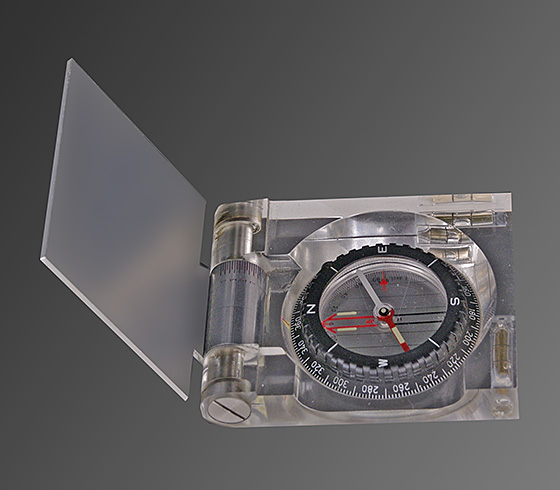

  Side view VUA compass



The compass housing is made of PMMA (Perspex, Plexiglas) and in this case machined with conventional milling cutter and lathe. Then it was completely polished.

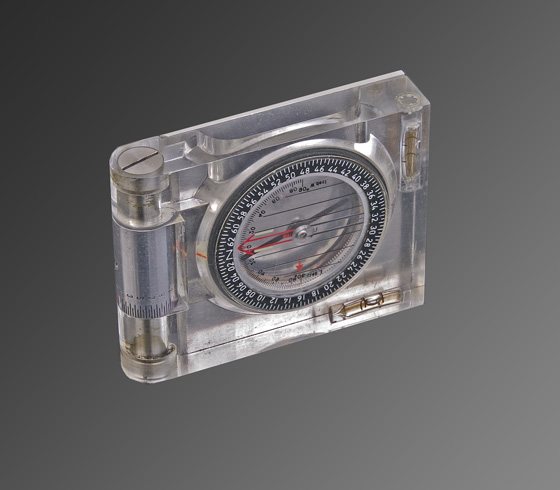

  Bottom view of the VUA compass



Bottom of the VUA compass with ring with 64 positions division. Also note the red engraved mark for the North arrow. The engraving on the south side is black

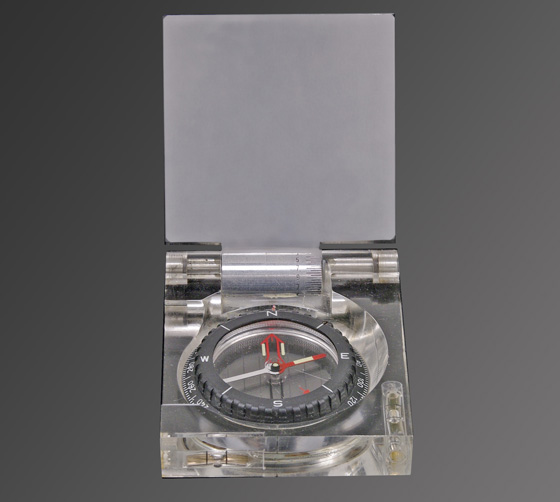

Front view VUA Compass


Front view of the VUA compass. Visible are the two cylindrical bubble spirit levels. These have a diameter of 6 mm and are sealed with a piece of PMA. The inclination scale is read on the inside of the compass.

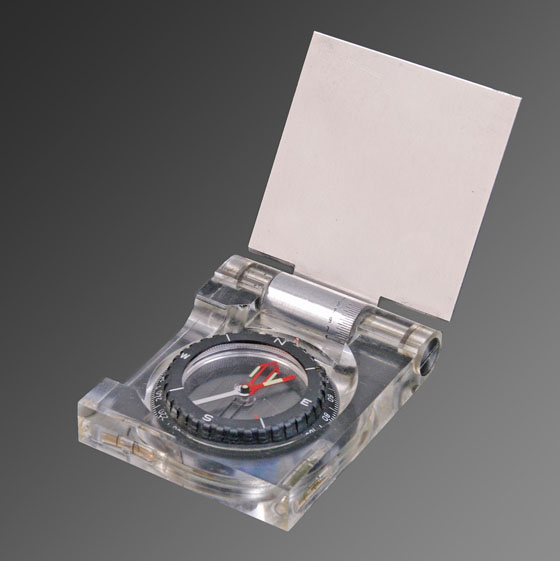

VUA compass seen from the top right.


Clearly visible the opening on the left side of the compass. The thumb of the left hand rests on this, while the compass rose can be turned with the right hand.

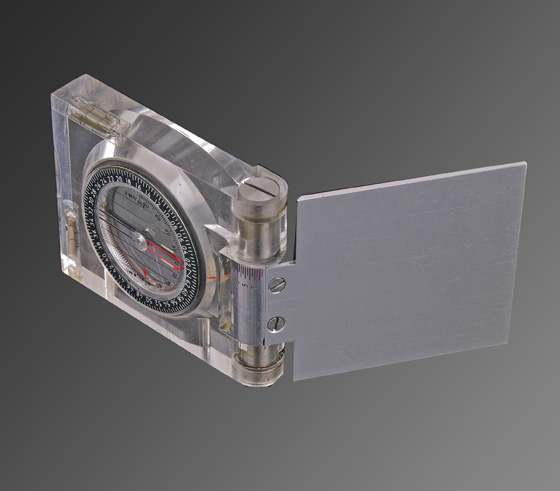

 Sloping bottom view



Sloping bottom view with folded open inclination measuring surface. The Dural hinged surface can also be made of other, non-magnetic materials, such as austenitic stainless steel or brass.

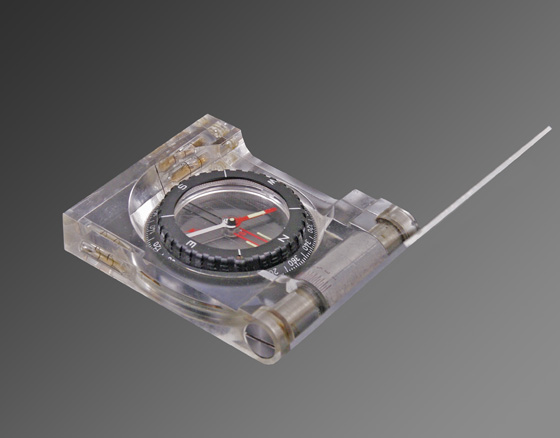

 VNU compass top view diagonally behind

The friction of the hinge point can be adjusted thanks to the plastic rings so that the hinge surface remains in the required position even after years of use.
